NSL25 - TS
REF :NSL25
Add to Product Board
The NSL Profile is designed to be used in most commercial and industrial applications. It is available in a 3mm gauge allowing for fixing with Vinyl, linoleum and medium carpets or similar floor covering. The profile is available in a range of designs with DDA and building regulations accounted for.
Designed to meet the guidelines in BS8300:2009+A1:2010.
External grade Tredsafe® Insert.
Tredsafe insert is manufactured from a special blend of P.V.C., silica quartz and polymeric plasticiser giving an homogeneous hard wearing anti-slip flooring for wet and dry conditions. The three dimensional pyramid pattern which provides excellent slip resistance in both wet and dry conditions.
| Product | |

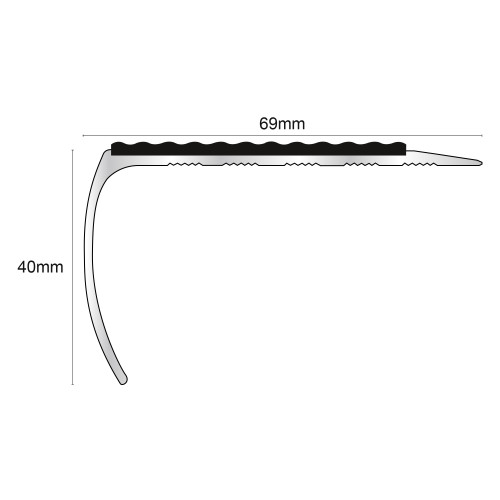

| W x D (mm) | 69 x 40 |
| Channel | Single |
| Length (m) | 2.46, 2.77, 3.22 |
| Type | Slimline |
| Design | Bullnose |
| Gauge (mm) | 3 |
| Material | Aluminium |
| Box Quantity | 20 |
| Title | |
|---|---|
| Insert Colours | Insert Colours |
| Nosing Tech Pack | Nosing Tech Pack |
| NSL25 Drawing | NSL25 Drawing |
| Nosing User Guide | Nosing User Guide |
| NSL Datasheet | NSL Datasheet |
- Ensure the steps are dry, clean, free of debris, level and even.
- If pre-drilled use the drill holes to mark steps for drilling location.
- Drill and Plug the steps.
- Apply suitable adhesive to the underside of the nosing and apply nosing to the step.
- Screw down the step with the appropriate size screws.
- Apply insert (if separate) or insert pip to cover the screw head.
